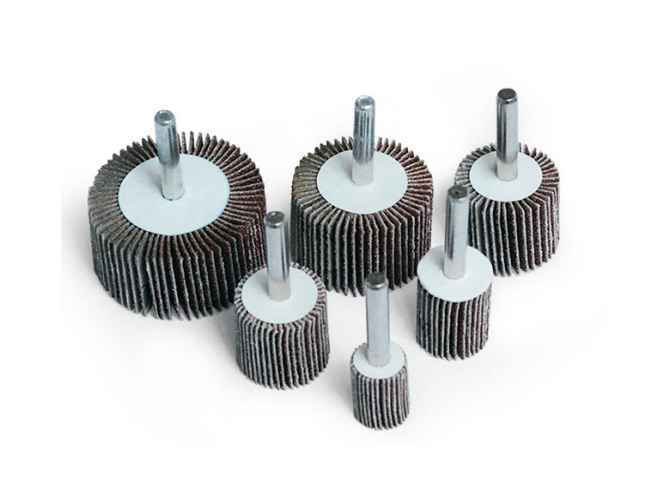

Small Diameter Flap wheels(¢20-80mm)

The radial elements carrying the abrasive grain are mounted around the tool axis in a fan shaped arrangement for optimum adaption to the workpiece contours.Recessed and projectingsurfaces are machined at the same time. The abrasive grain is embeddedin the same time.the abrasive grain is embedded in the synthetic resin coating of the high tensile strength textile elements.

Advantages

High flexibility and concentricity

High stock removal rate due to aggressive abrasive material

The textile elements wear off uniformly and without residueon the materialsurface

Applications:

Small diameter flap wheels on large radii in tool and mould making

Working in small and difficult to reach areas in tank and apparatus construction

Grinding of valves and fittings made of non-ferrous metals and light alloys

Available with threaded bushings on request

Recommendations for use:

Small diameter flap wheels perform best at peripheral speeds of 15-20m/s,where theoptimum matching behaviour and surface finish is achieved.

To achieve higherstockremoval rates itis recommended to use coarser grit rather cause premature tool wear.

The flat core design allows the use of these tools in face grinding near edges and corners.

For safety reasons, the specified maximum speed must never be exceeded.

Ordering example

FP

5030

6

A

120

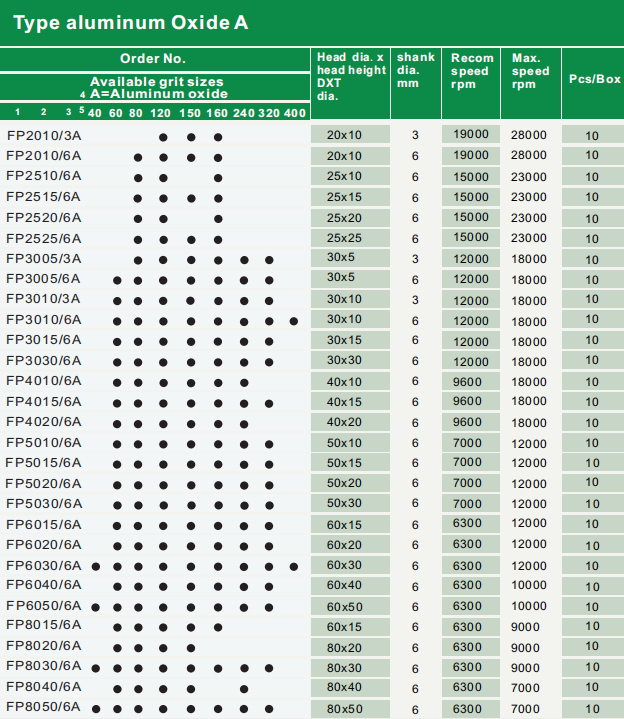

How to order

FP =Flap wheel

Dimensions =Head dia.x head height mm

Shank diameter =mm

Abrasive meterial A= Aluminium oxide

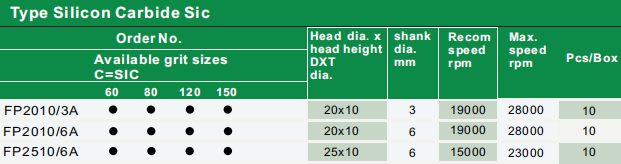

Abrasive meterial C=Silicon carbide

Grit size
